Hardware

Chassis

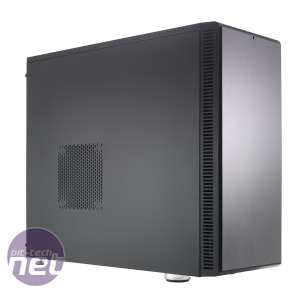

Fractal Design R3

Description

Define R3 – the successor to the best selling Define R2!
Now available with a bunch of improvements, including improved cable routing, air flow and bigger hole in M/B plate for mounting CPU coolers.

Specs

Black ATX Midi Tower
8x 3,5 inch HDD trays, compatible with SSD!
2x 5,25 inch bays, with 1x 5,25>3,5 inch converter included
On top of front panel: 2x USB 2.0, 1x eSATA and Audio I/O
No PSU included (removable filter below PSU)
M/B compatibility: Mini ITX, Micro ATX and ATX
7x expansion slots with sleek white painted brackets
Supports graphic card lengths up to ~290mm
Supports CPU coolers with height of ~165mm
Supports PSU's with a depth of maximum circa 170mm, when using bottom 120/140mm fan location. When not using the bottom 120/140mm fan location, the case supports also longer PSU's, typically 200-220mm.
Case size (WxHxD): 207.40x440x521.2mm
Net weight: 12.50kg

Data sheet: http://www.frlen.net/pdf/Defin_R3_product_sheet.pdf

Motherboard

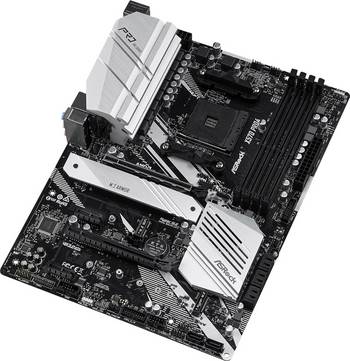

ASRock X570 Pro 4 AM4/4DDR4/HDMI/DP/ATX

Description

N/A

Specs

Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
10 Power Phase Design
Supports DDR4 4066+ (OC)
2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 (Key E) For WiFi
AMD Quad CrossFireX™ and CrossFireX™
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
2 USB 3.2 Gen2 (Rear Type A+C), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
Intel® Gigabit LAN
ASRock Polychrome SYNC

Manual: https://www.frlen.net/pdf/X570%20Pro4.pdf
https://www.asrock.com/mb/AMD/X570%20Pro4/index.asp

CPU

AMD Ryzen 5 5600X

Description

N/A

Specs

Product Family: AMD Ryzen™ Processors
Product Line: AMD Ryzen™ 5 Desktop Processors
Former Codename: "Vermeer"
# of CPU Cores: 6
# of Threads: 12
Max. Boost Clock: Up to 4.6GHz
Base Clock: 3.7GHz
L2 Cache: 3MB
L3 Cache: 32MB
Default TDP: 65W
Processor Technology for CPU Cores: TSMC 7nm FinFET
Unlocked for Overclocking: Yes
CPU Socket: AM4
Max. Operating Temperature (Tjmax): 95°C
PCI Express® Version: PCIe 4.0
System Memory Type: DDR4
System Memory Specification: Up to 3200MHz
Integrated Graphics: No
Graphics Model: Discrete Graphics Card Required
Supported Technologies:
- AMD "Zen 3" Core Architecture
- AMD StoreMI Technology,
- AMD Ryzen™ Master Utility,
- AMD Ryzen™ VR-Ready Premium
Launch Date: 2020-05-11
